Product Details
＋
| Product Attribute | Attribute Value |
|---|---|
| Depth, Panel | 65 mm |
| Display Type | LED |
| Input Type | PTC |
| IP Rating | IP20, IP65 |
| Length | 2.992" (76mm) |
| Maximum Operating Temperature | 150 °C |
| Measurement Range | -50 to 150 °C, -58 to 302 °F |
| Minimum Operating Temperature | -60 °C |
| Mounting Type | Panel Mount |
| Number of Inputs | 1 |
| Number of Outputs | 2 |
| Operating Temperature, Maximum | 50 °C |
| Operating Temperature, Minimum | 0 °C |
| Output Type | Relay |
| Shop By | Factory Choice |
| Size | 76 x 34.5 mm mm |
| Size, Thread | 76 x 34.5 mm |
| Supply Voltage | 10 to 30 VDC |
| Temperature Operating Range | -60 to 150 °C |
| Temperature Range | -60 to 150 °C |
| Termination | Screw |
| Thread Size | 76 x 34.5 mm |
| Type | On Off Temperature Controllers |
| UPC Code | 5056279004299 |
| Warranty | 3 Year Warranty |
Overview

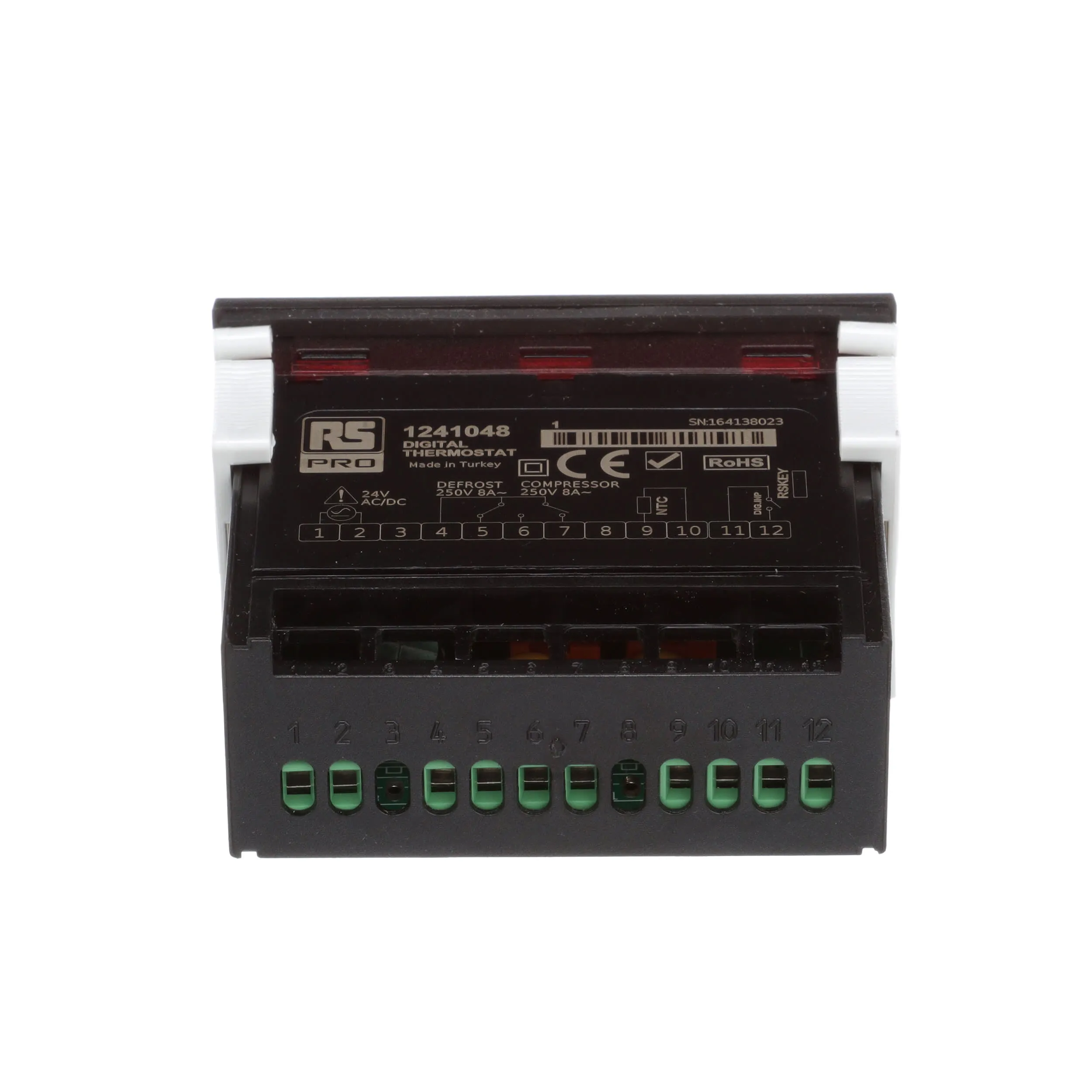

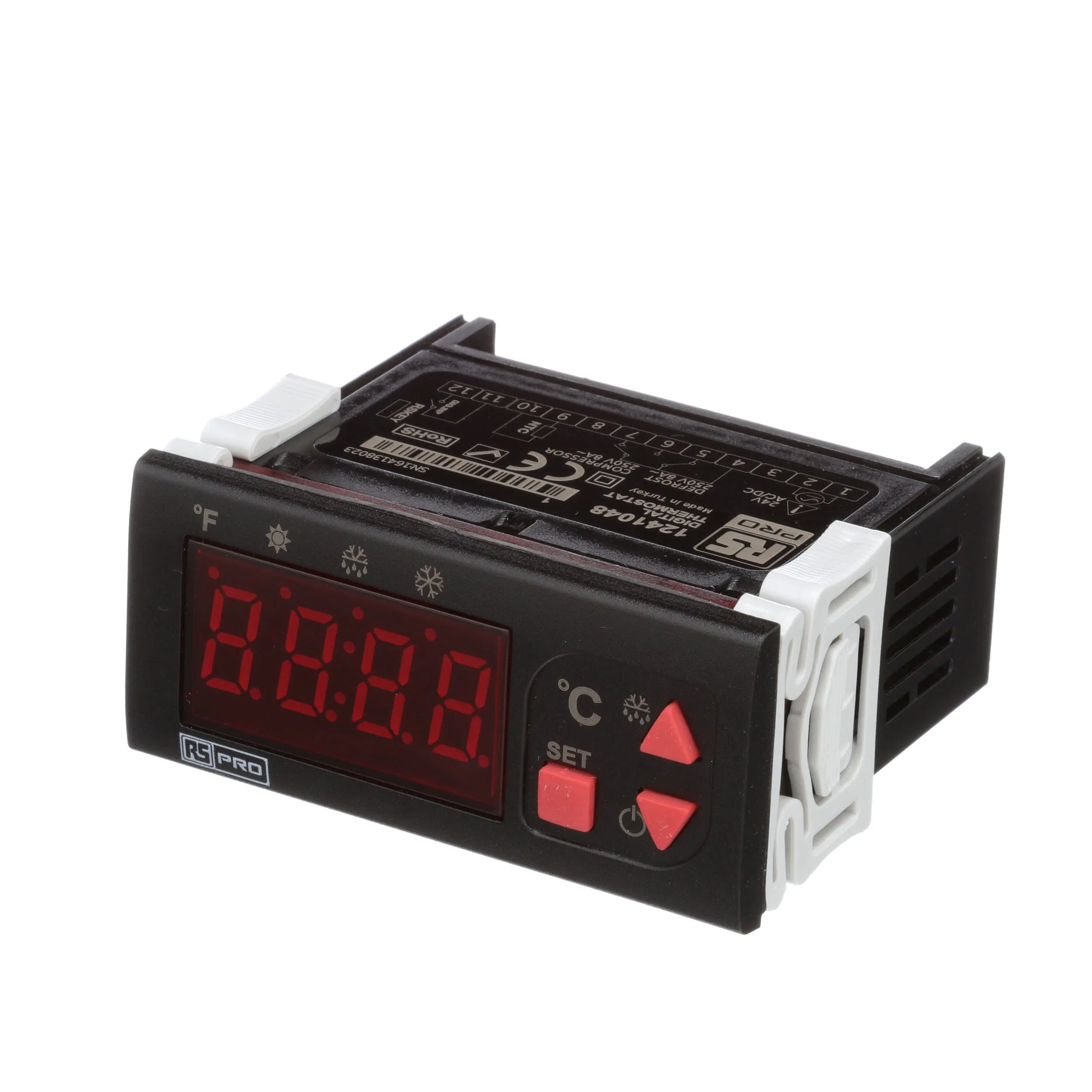

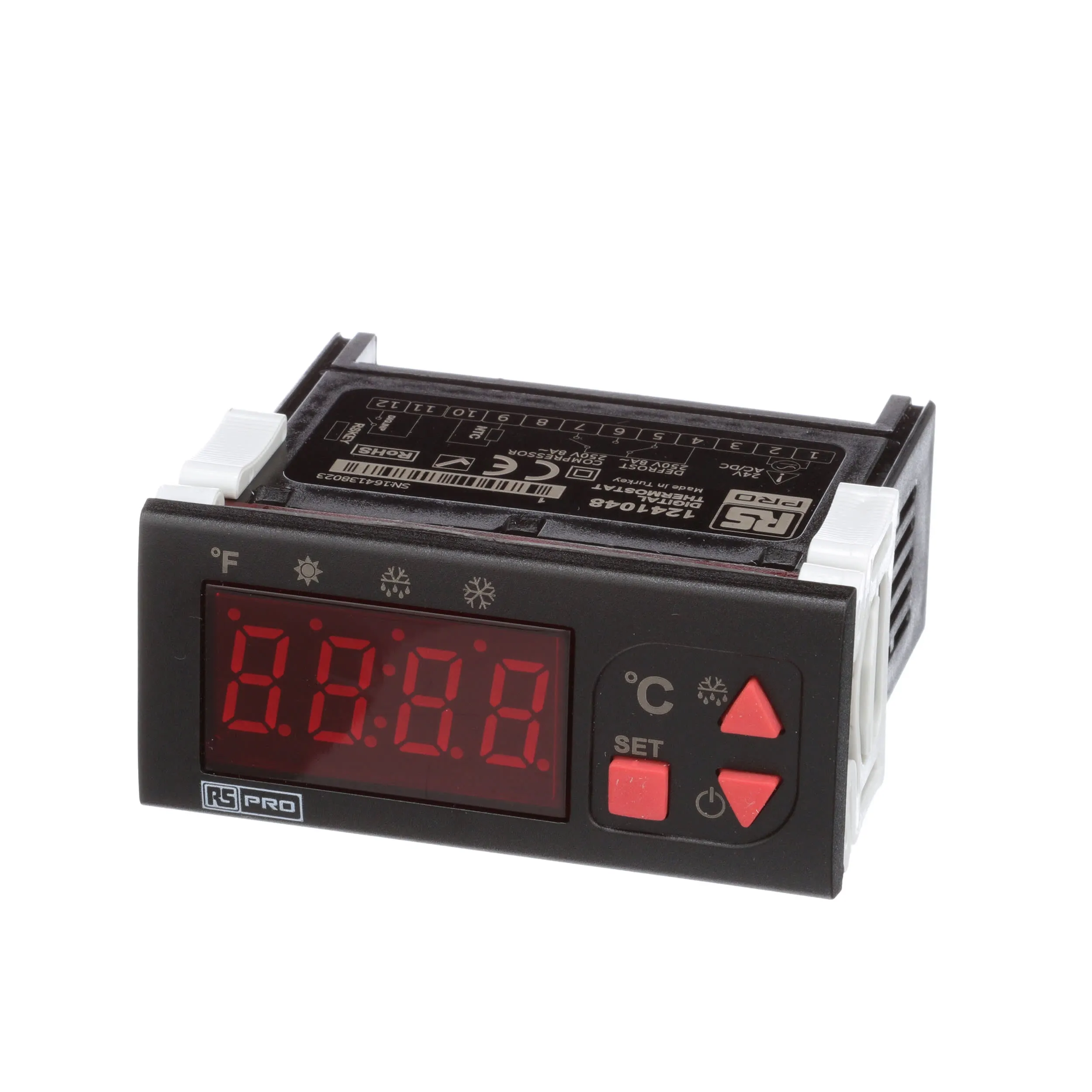

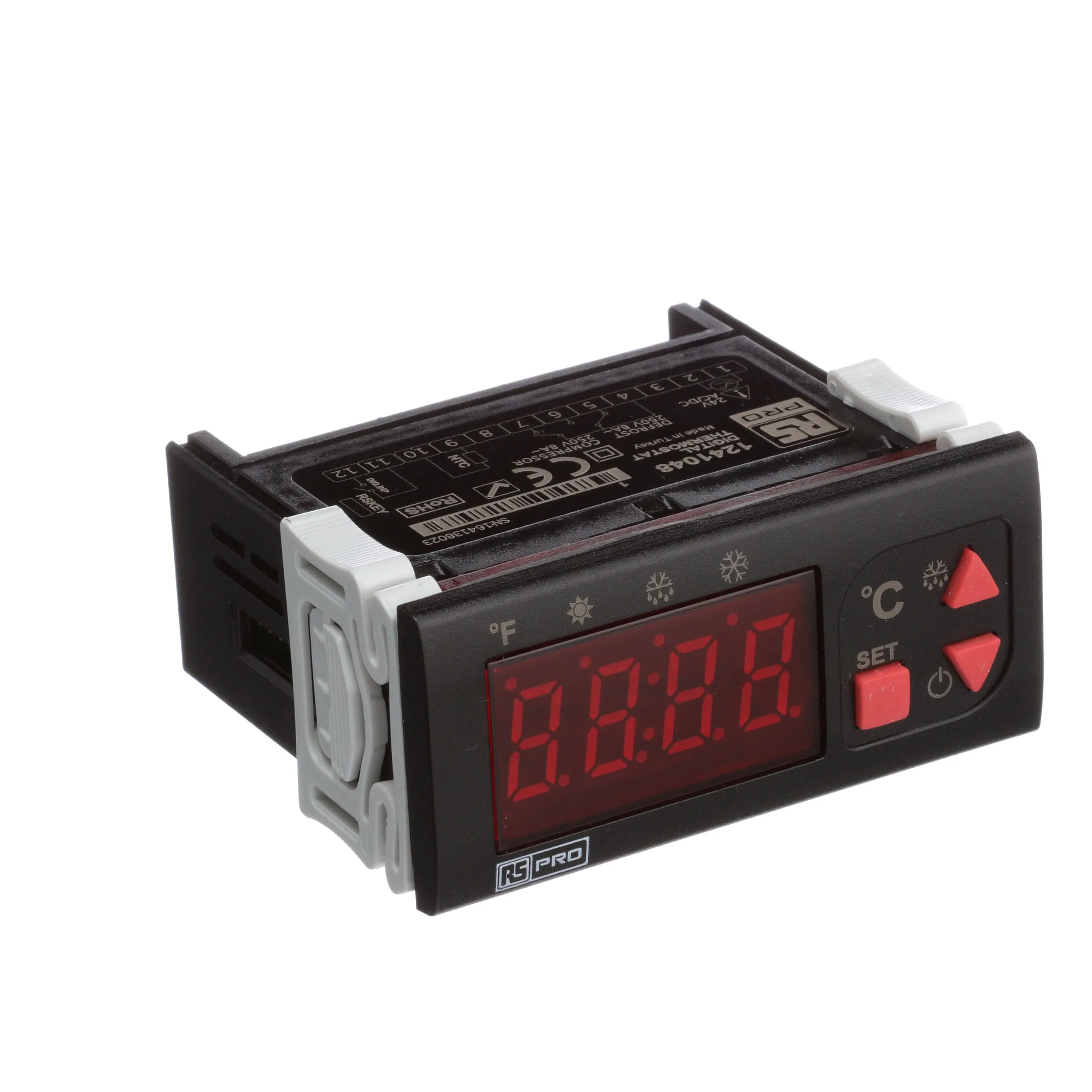

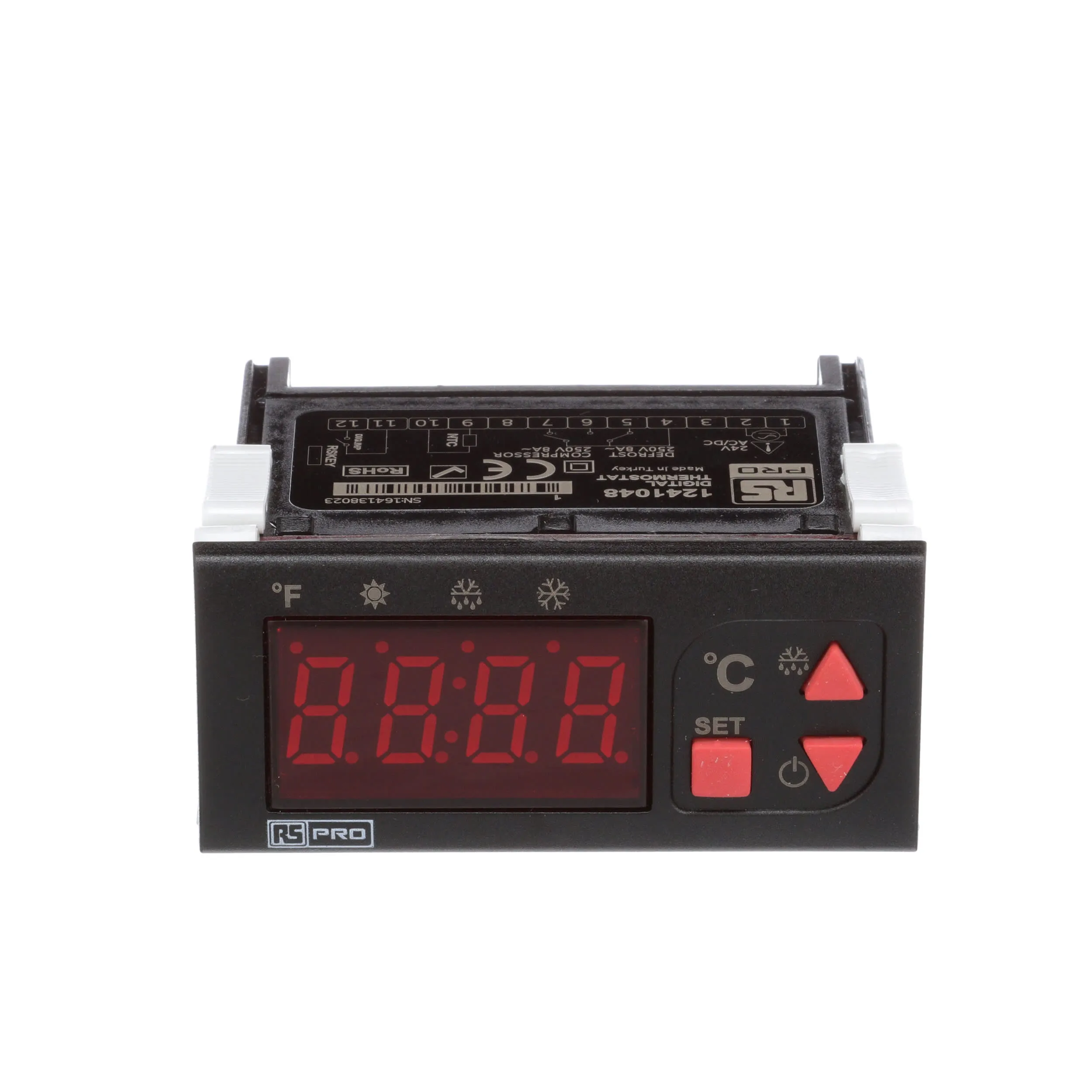

RS On/Off Temperature Controller, Panel Mounting
These heating & refrigeration controllers are designed for measuring and controlling temperature.
They can be used in many applications with their easy use, On/ Off control
