Mishimoto

MMBCC-BR27-21P

Oil Catch Cans

The legendary Ford Bronco has returned, and under the retro-styled hood lies a new legend: the 2.7L EcoBoost. The 2.7L EcoBoost has been powering Fords for nearly a decade and has become one of the most respected truck engines available. The second generation 2.7L features both port and direct injection for efficiency throughout the RPM range. While the added port injection helps clean the intake valves, it doesn't protect the rest of your engine from the effects of blow-by. As blow-by flows through your intake, it coats components like sensors and your intercooler in a sludge of oil, carbon, and fuel, reducing their ability to function. Blow-by can also reduce the effectiveness of your engine oil. The factory air-oil-separator drains blow-by back into the oil pan, which is great for the environment, but the fuel and water in blow-by can thin your engine oil and reduce its effectiveness. Finally, any blow-by that does make its way back into the cylinder can reduce the effective octane of your fuel and, for a high-strung turbocharged engine like the 2.7L EcoBoost, lower octane means less power. The solution to all of those issues is to capture the blow-by and keep it out of the engine with a Mishimoto catch can. Our direct-fit baffled oil catch can kit for the 2021 Ford Bronco 2.7L EcoBoost uses custom-molded hoses to intercept blow-by before it enters the intake and captures it to be recycled at your next oil change. Our catch can features an internal baffle and air turbulators that help condense oil, fuel, and water vapor from the blow-by, as well as a 50-micron sintered bronze filter that captures carbon particles. Our catch can is mounted away from engine vibration with a sturdy 2.5mm-thick steel bracket and our molded hoses include Ford-specific quick-disconnect fittings for an easy and clean install. Like all our Ford Bronco products, this catch can kit is backed by our Mishimoto Lifetime Warranty for a lifetime of clean running.

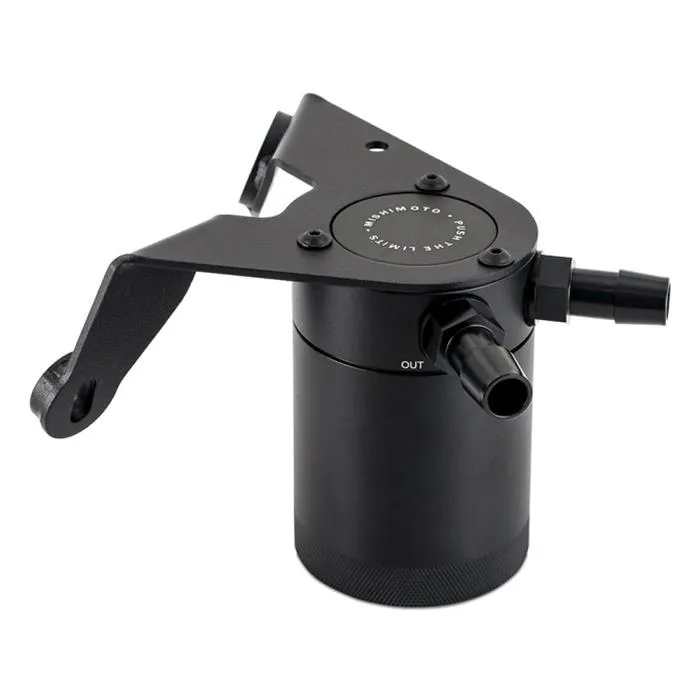

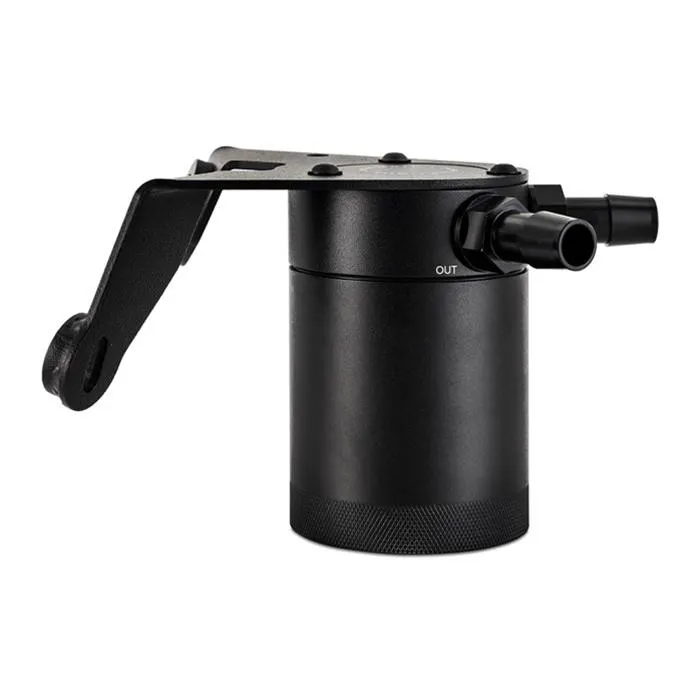

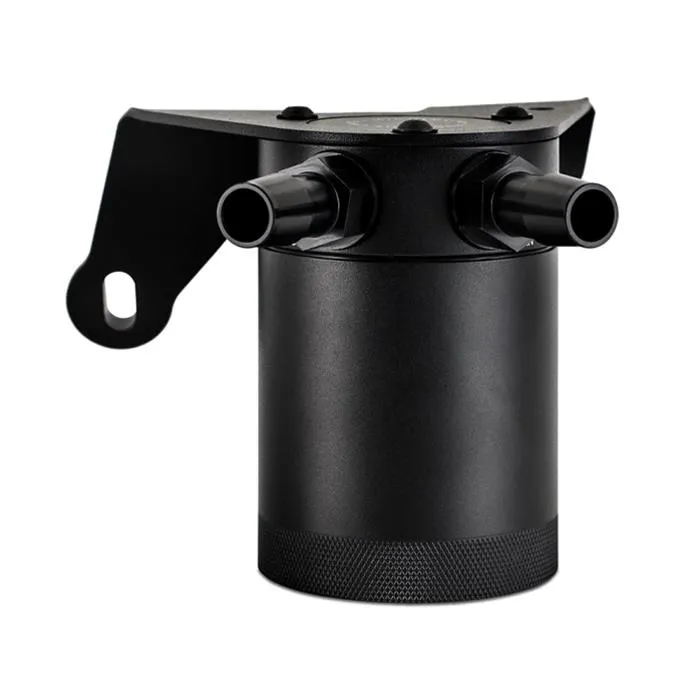

Mishimoto baffled oil catch cans are designed to separate oil particles from the PCV air that would normally have just been routed back to your intake. They feature custom grooves in the catch can's inlet that turbulates the air longer and ensures that all of the oil sinks to the bottom, leaving nothing but clean air to pass through the 40 micron bronze filter to the intake. An internal baffle keeps the collected oil from splashing around under race conditions. These catch cans are machined from 100 percent billet 6061 aluminum, and accept AN fittings at the inlet, outlet, and drain area—allowing for over 27 possible configurations. For maximum fitment options, the top cog mounting setup enables the cans to be mounted from multiple angles. To make maintenance easy, the drain plug can be removed to allow for AN return to the oil pan. Mishimoto baffled oil catch cans are washable, unlike many other cans that require you to replace your filtration system, and they're available in a variety of colors. Order the model recommended to fit your vehicle, engine, and/or transmission application.
