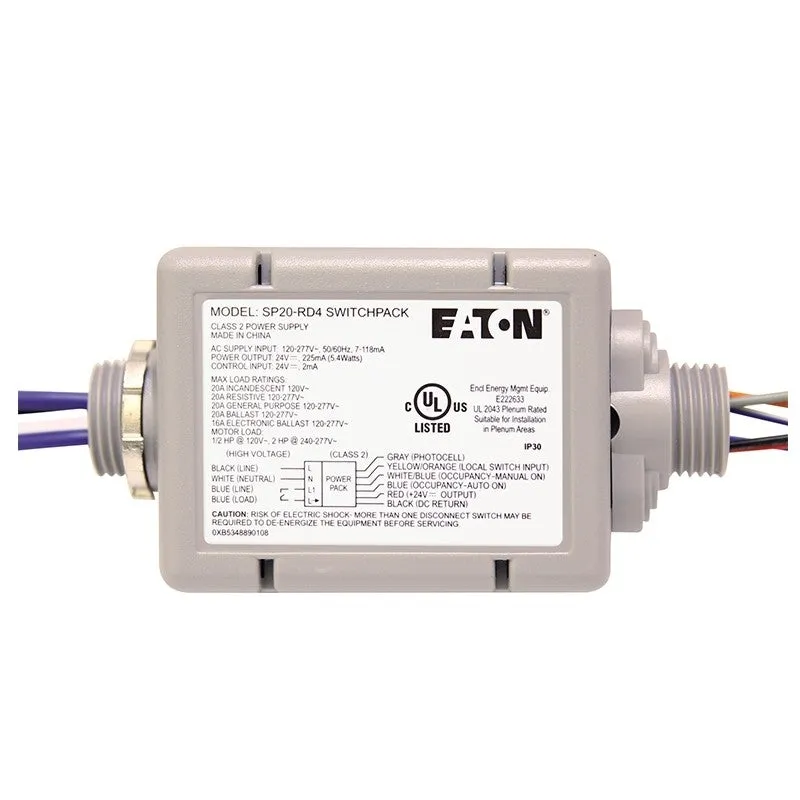

The SP20-RD4 is the latest addition to the Greengate Switchpacks family, delivering a wide array of switching solutions in a single unit. This robust switchpack is designed to deliver unmatched performance. The SP20-RD4 features robust and reliable mechanical latching relays, exclusive fail-safe circuitry, daylight harvesting, bi-level switching and is configurable for energy code requirements. The switchpack is specifically designed to handle high inrush electronic ballast loads and offer unmatched durability and service.

Features:

• Finish: Gray
• Voltage: 120-230-277VAC, 50/60 Hz
• Output: 24 VDC, 225mA
• Motor Load: 1HP-120V, 2HP-250V
• LED ready
• Auto On or Manual ON
• Fail-Safe circuitry-in the event of failure, return to close (ON)
• Zero-Cross circuitry
• Photocell switching ready
• Suitable for general purpose plug load control
