| Product Attribute | Attribute Value |
|---|---|
| Body Style | Panel Mount |
| IP Rating | IP20 |
| Measurement Range | 0-5.0 In. WC |
| Mounting Type | Panel Mount |
| Output | 4-20 mA and Dry Contact |
| Sensing Mode | Differential |
| Series | |
| Supply Voltage | 12-28 VDC, 12-28 VAC 50 to 400 Hz. |
| Termination | Terminal Block |
| Type | Differential |
Overview

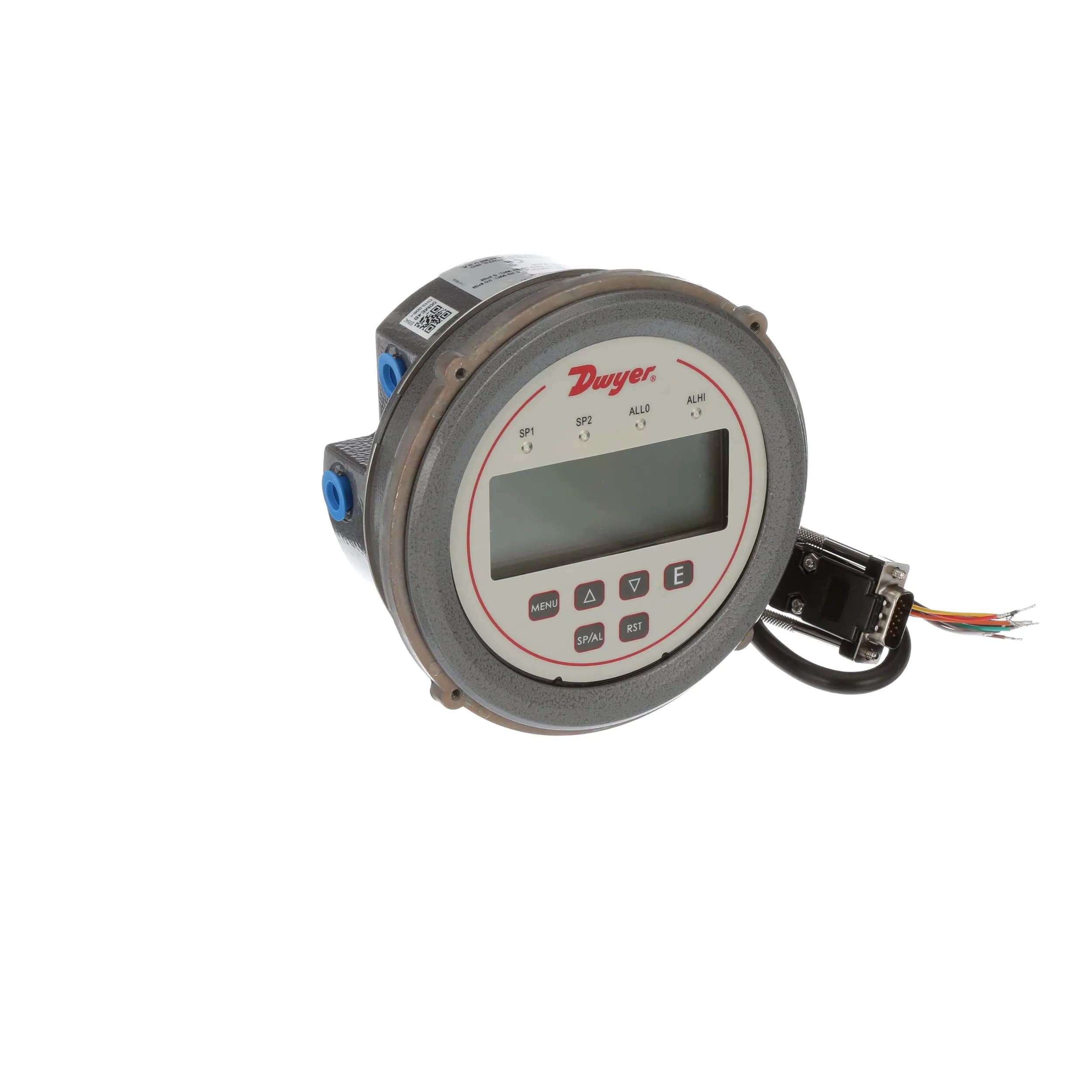

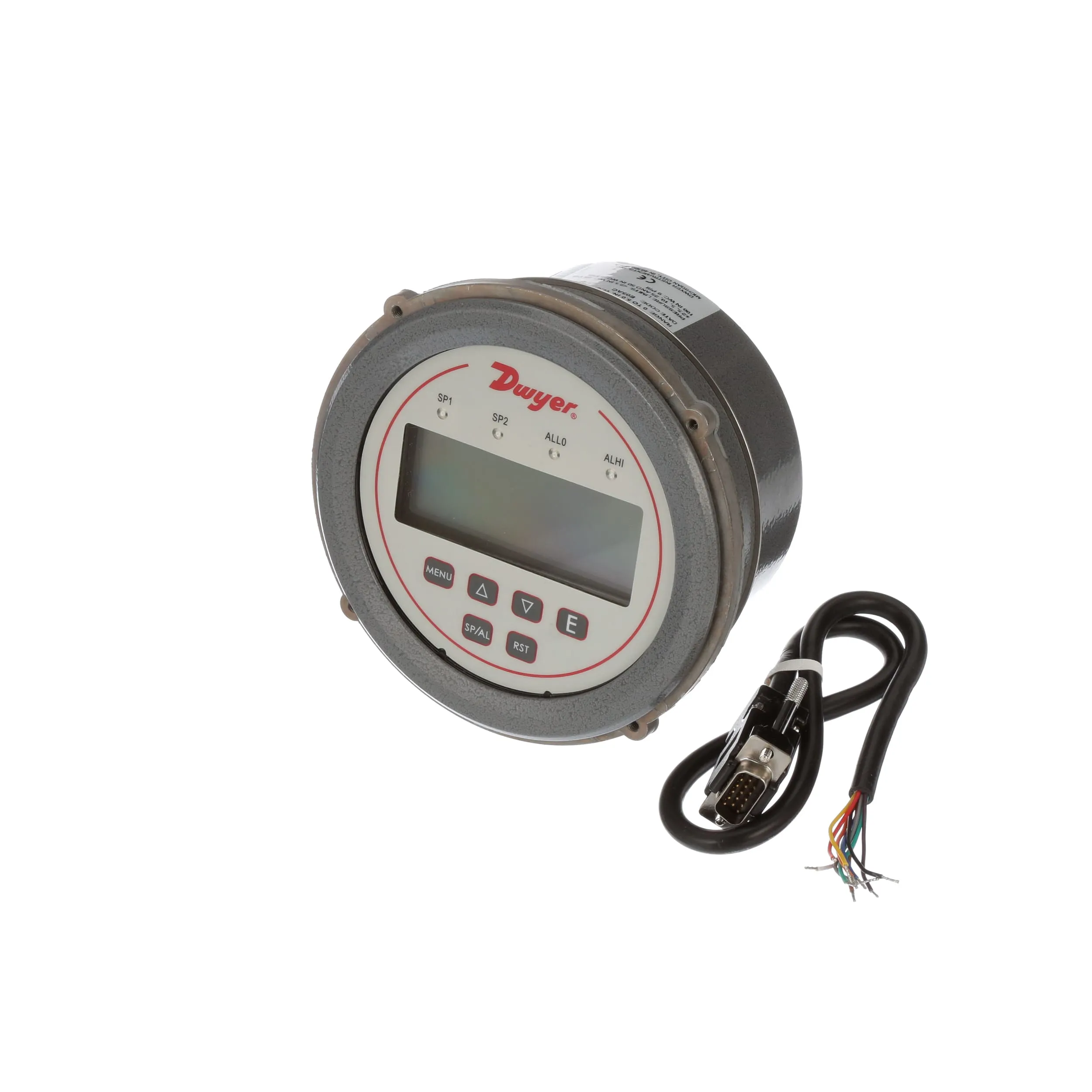

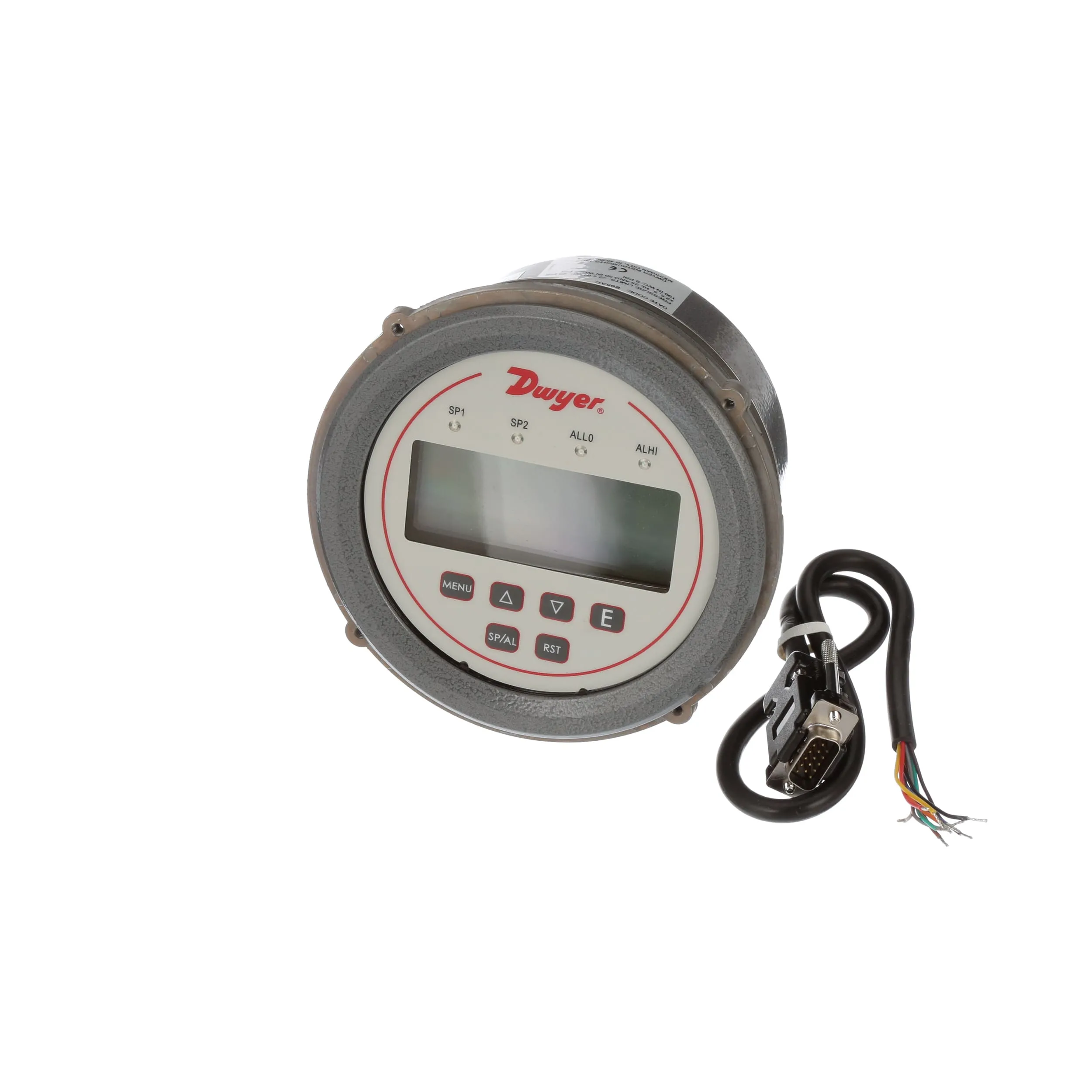

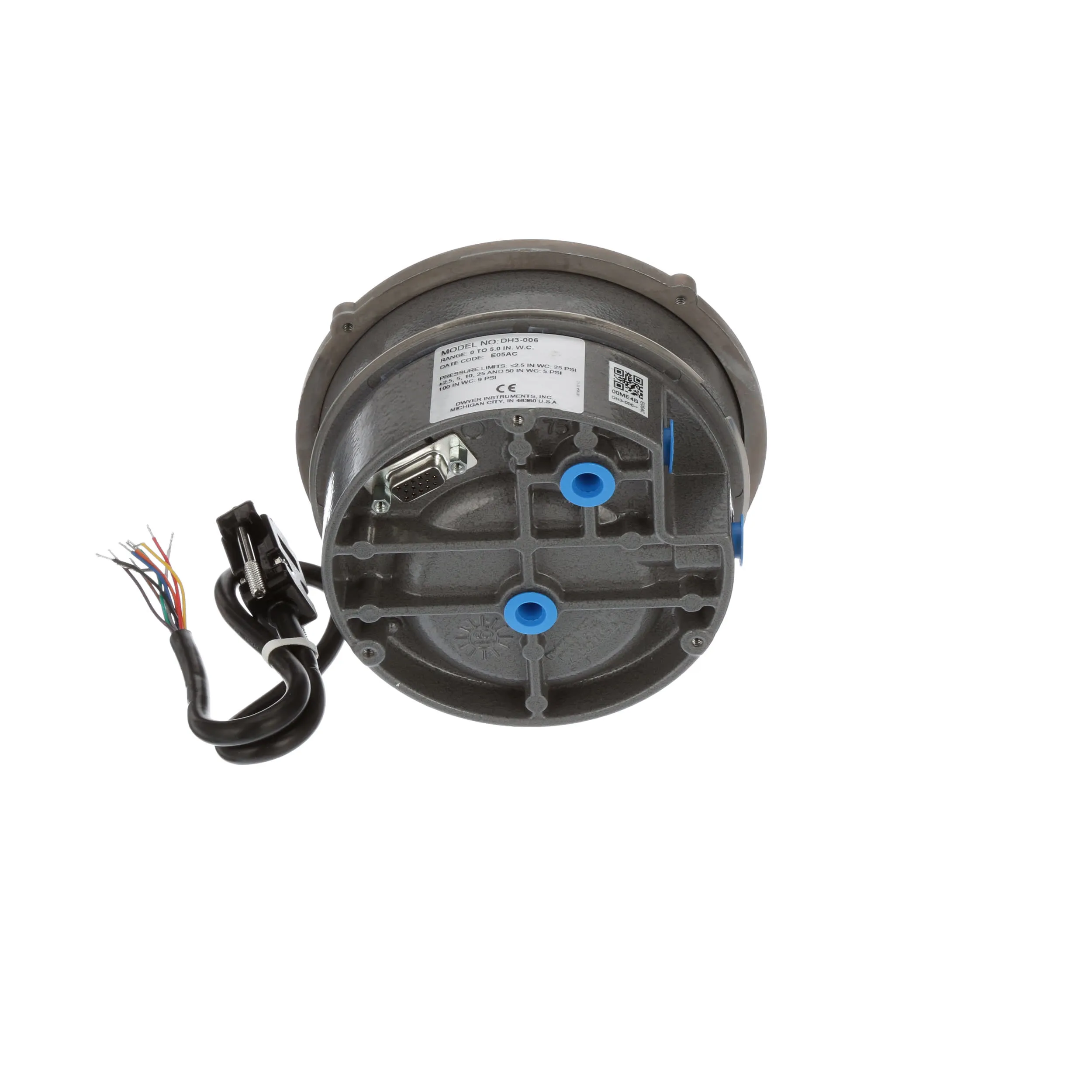

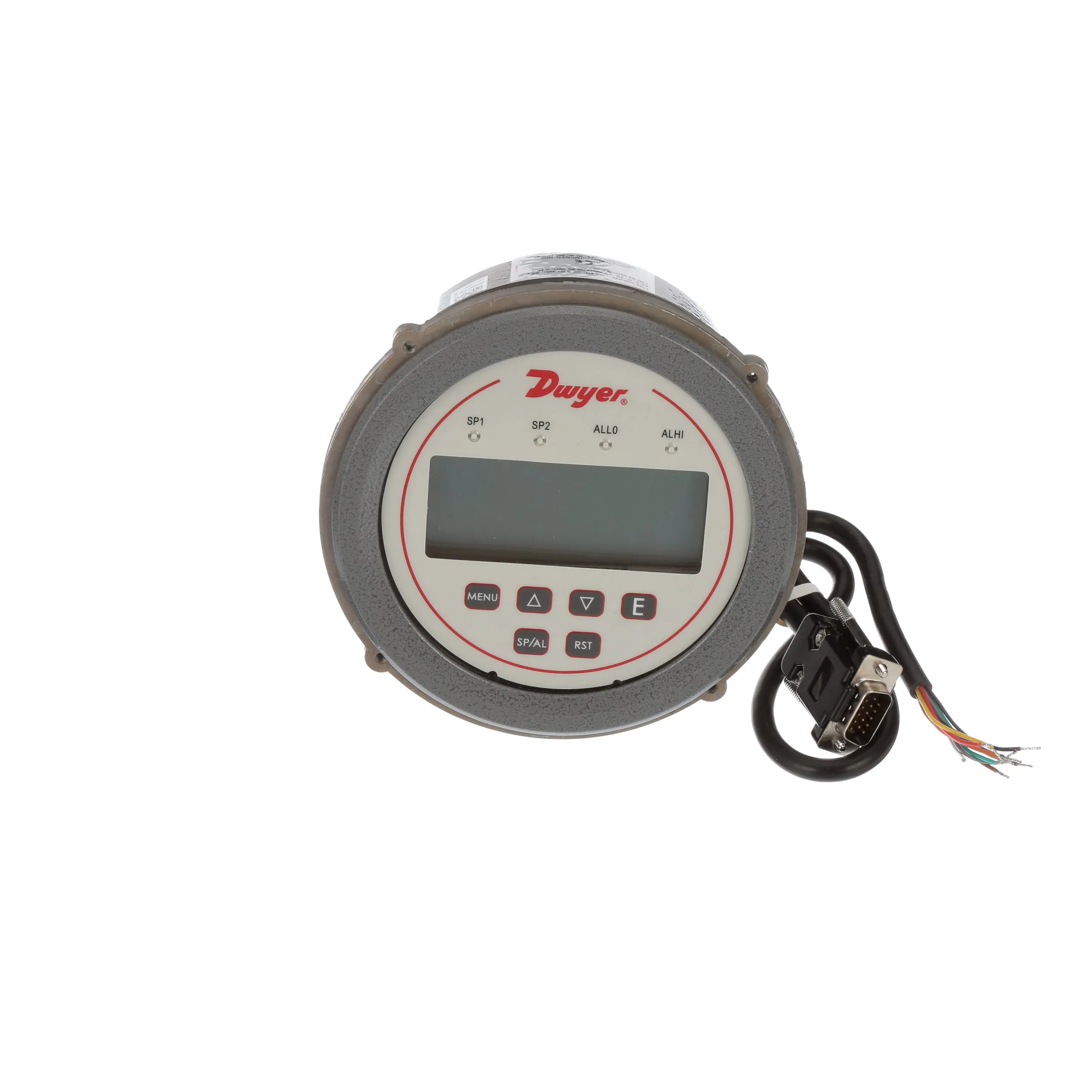

The Series DH3 Digihelic® Differential Pressure Controller is a 3 in 1 instrument possessing a digital display gage, control relay switches, and a transmitter with current output all packed in the popular Photohelic® gage style housing. Combining these 3 features allows the reduction of several instruments with one product, saving inventory, installation time and money. The Digihelic® controller is the ideal instrument for pressure, velocity and flow applications, achieving a 1% full scale accuracy on ranges down to the extremely low 0.25" w.c. to 2.5" w.c. full scale. Ranges of 5" w.c. and greater maintain 0.5% F.S. accuracy. Bi-directional ranges are also available. The Series DH3 Digihelic® controller allows the selection of pressure, velocity or volumetric flow operation in several commonly used engineering units. 2 SPDT control relays with adjustable deadbands are provided along with a scalable 4-20 mA process output.
