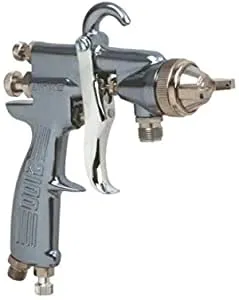

Binks 2100 Series Conventional Spray Gun

Manufacturer: Carlisle Binks

Part Number: 2101-XXXX-X

Description: Model 2100 Spray Gun

Setting The Standard For Rugged Versatility And Comfortable Handling

The Model 2100 Series Gun is corrosion resistant with SS fluid passages, an Air Control Valve in an Ergonomic handle, with new MAXIMUM DELIVERY air nozzles. It has the largest selection of air and fluid nozzles in the industry. The Model 2100 will spray all conventional coatings, including high solids.

The Binks 2100 is a conventional, full-size spray gun which can be used to spray a wide range of materials including adhesives, epoxy, and abrasive fluids.

The 2100 spray gun is a durable, comfortable, well balanced, and easy to use. A specially designed grip measurably improves operator control, balance, and spray quality.

Supported by the largest selection of air nozzles in the industry, the model 2100 will spray all conventional coatings, including those with high solids.

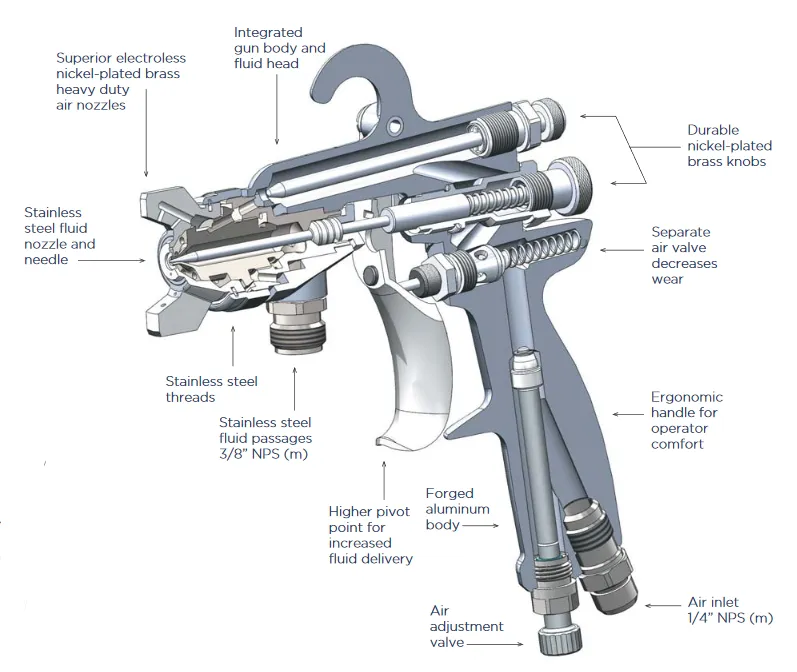

The 2100 spray gun features a forged aluminum body that has been precision machined, and brass air nozzles and knobs that are nickel plated. These features ensure that the 2100 gun will withstand many years of use under the toughest working conditions.

There is a range of extensions available for the 2100 gun for those difficult to reach applications.

• Corrosion resistant stainless steel fluid passages designed for waterborne materials

• Curved, ergonomic handle reduces fatigue

• Integrated head has fewer parts for quick repair

• Stainless steel threads won’t cross-thread, increasing life.

• High trigger pivot point increases fluid flow capability

• Large pattern sizes increase production rates

• Cheater valve adjusts air at the gun, saving operator time

• “Maximum Delivery” air nozzles have better atomization for greater product finish with less material

Coating Types & Applications

• Solvent-borne coatings

• Waterborne coatings

• High Solids coatings

• Sealers

• Lubricants

• Lacquers

• Enamels

  And many others

Markets

• Aerospace

• General Industrial

• Protective Coatings

Parts and Accessories:

• () Retainer Ring - Fits air nozzles 244, 250, 252, 262
• () Base & Ring Kit - Fits air nozzle 200

Air Nozzles (Part No.) Name -

• () 63P

• () 63PB
• () 64PA
• () 66S
• () 66SD
• () 67PB
• () 67PD
• () 68PB
• () 66R
• () 63PH-1
• () 63PR
• () 66SK
• () 66SD-3
• () 66SDJG
• () 200
• () 201
• (46-2205) 206
• () 244
• () 250
• () 252
• () 262
• () 21MD-1
• () 21MD-2
• () 21MD-3

Fluid Nozzles -

Fluid Needles -
